Urban Coach House with Light Straw Clay insulation

The coach house was originally designed as a place for the family of 4 to live in while renovations were being completed in their main house. Once their house was complete, the coach house would become a rental. The option to convert the space from one to two rental units provided the owner flexibility to adjust with market demands or accommodate family visits without losing income.

We explored the option of using Light Straw Clay (LSC) insulation and you can learn more about that process here. The project requirements changed once the family decided to require a single story for their ageing parents. The building is currently under construction in a completely different configuration; images to come.

DESIGN PROCESS: Design development images to fine tune light

SKYLIGHTS

CLERESTORY WINDOWS

OR

11 LSC CoachHouse DWG Render Option 01.jpg

BALCONY

11 LSC CoachHouse DWG Render Option 01.jpg

OR

INTERIOR WINDOWSEAT OR DESK

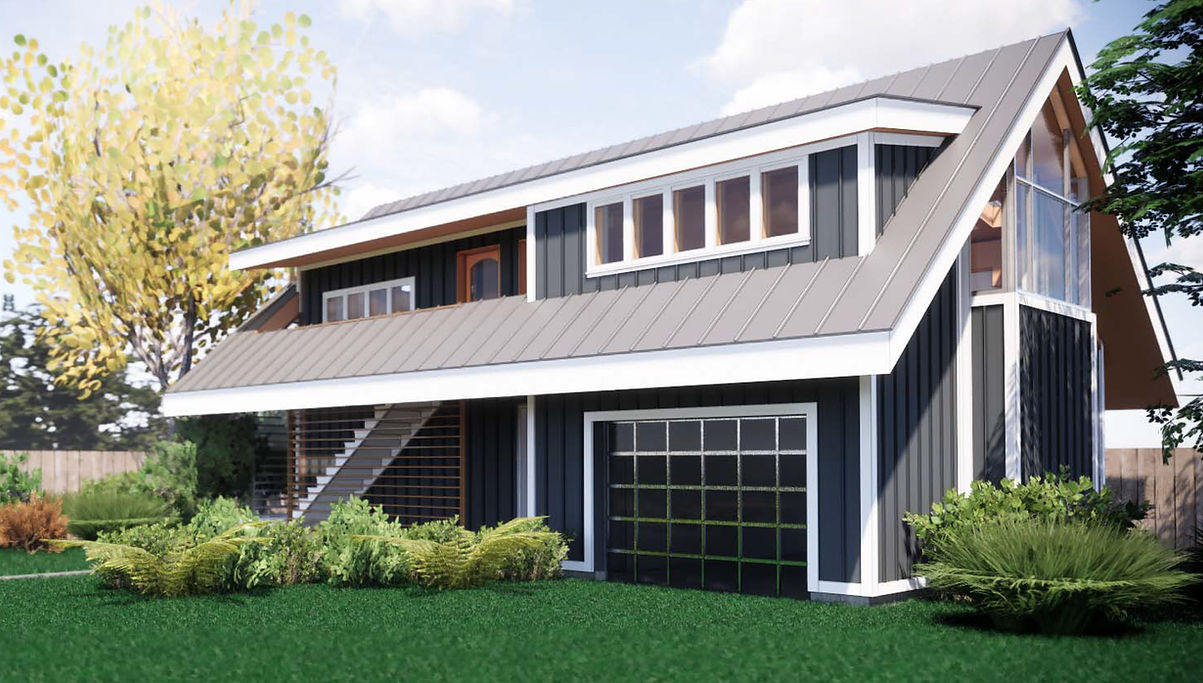

RENDERING OPTION 2 : Board + Batten Facade Material, verfical

11 LSC CoachHouse DWG Render Options04.jpg
11 LSC Coachhouse DWGplan FL01.jpg

FIRST FLOOR PLAN

11 LSC CoachHouse DWG Plan FL02.jpg
1 or 2 bedroom apartment
Master Bedroom or
separate rental

SECOND FLOOR PLAN: SPACE CONVERTS TO 2 RENTALS

1ST FLOOR PLAN

2ND FLOOR PLAN

3RD FLOOR PLAN

Rendering of North+West facades

11 LSC CoachHouse DWGsite 01.jpg

SITE PLAN

11 LSC CoachHouse DWG Section Bldg.jpg
11 LSC Coachhouse DWGelevation East.jpg

BUILDING SECTIONS + EAST ELEVATIONAL STUDY

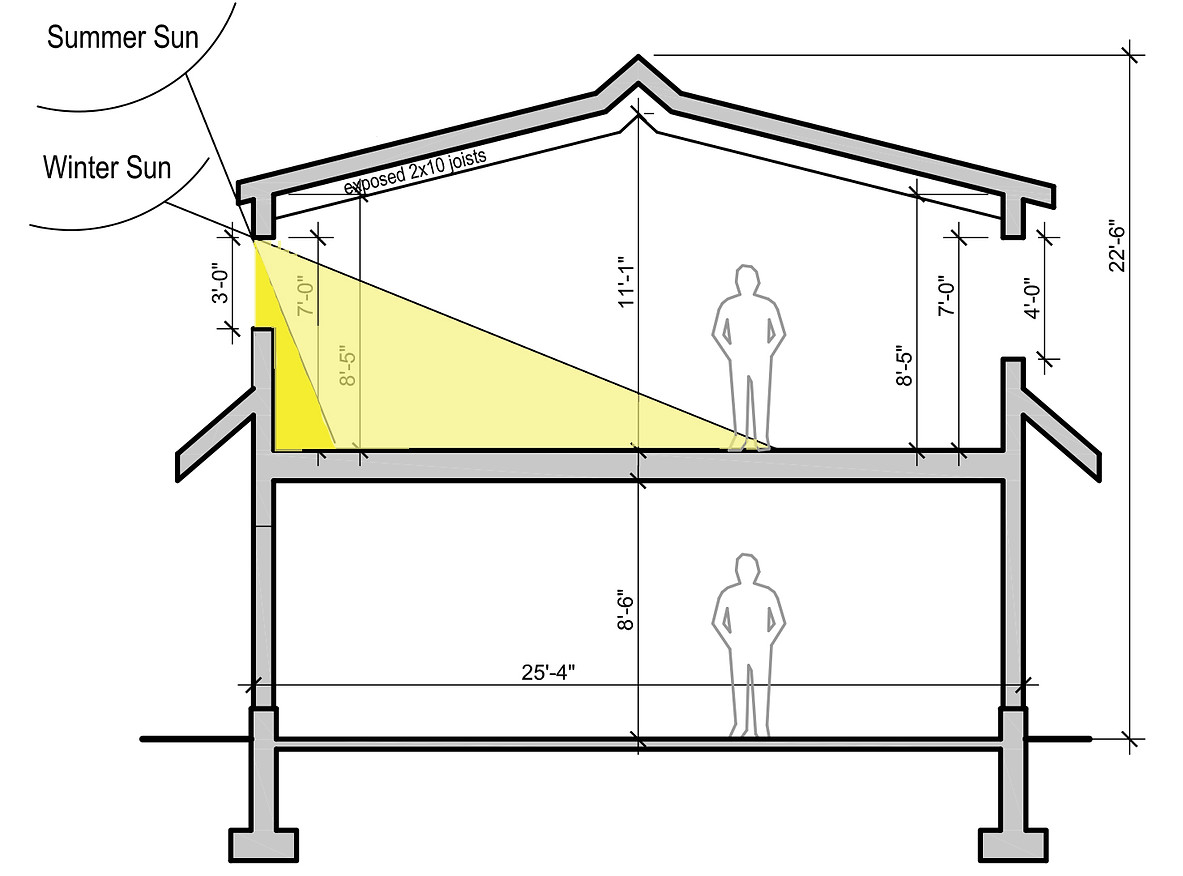

11 LSC CoachHouse DWG Section Sun.jpg

MODULATING LIGHT: Winter sun penetration informs size of overhang
